Configure a large load or EV charger

Add a device here when its demand needs different battery treatment from the rest of the home. This page covers the sensors and setup fields; Load exclusion explains which behavior to choose and what it does.

Do I need it?

Use it if you want to add a large load, such as an electric vehicle (EV) charger, wallbox, heat pump, or immersion heater, that the battery should ignore fully or partly.

You do not need it if the battery should treat the device exactly like ordinary household demand.

Before you start

  • For a metered device, prepare a numeric Device power sensor in watts.
  • For dynamic power control (DPC), also prepare a Device active / EV charging sensor that reports when the device requests power.
  • For an EV charger without power telemetry, prepare that activity sensor instead of a watt sensor.
  • Decide whether your main home/grid sensor already includes this device's consumption.
  • Optional: prepare an energy sensor for demand still expected today and a presence entity when predictive charging should reserve solar for the device.

How to enable it

  1. Open Settings → Devices & services → Omnibattery → Configure → Excluded devices, enable Configure special devices, and add a device.
  2. Select Device power sensor. For a state-only charger, leave it empty, select Device active / EV charging sensor, and enable EV charger without power telemetry.
  3. Set Consumption is included in home consumption sensor using the test below.
  4. Select the behavior you need: Allow to use solar surplus (do not charge battery), Device has dynamic power control, or Cover home while device is active. Use the behavior guide before combining them.
  5. Optional: add Expected remaining demand (kWh) and its presence entity, then save the device.
Main sensor measures the whole home, including this device
→ Enable "Consumption is included in home consumption sensor"

Main sensor measures only the domestic circuit and cannot see this device
→ Leave it disabled

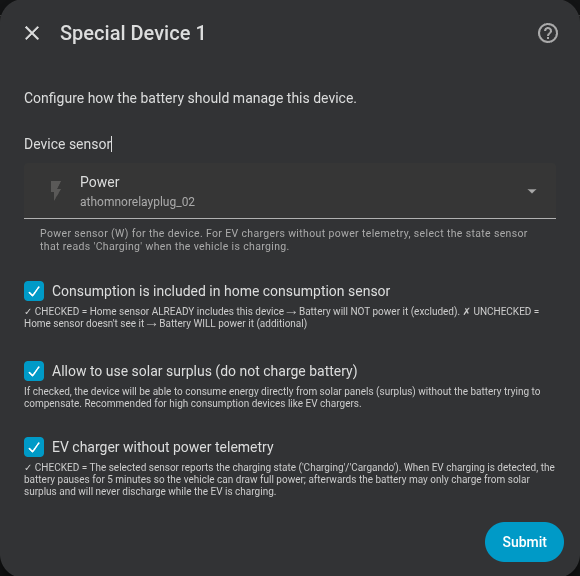

Configure an excluded device

What you will see

Each saved device exposes live controls on the Omnibattery system device:

Control Availability
Device – Enabled Every configured device
Device – Solar Surplus Every configured device; setup determines its initial state
Device – Dynamic Power Control Metered devices; setup determines its initial state
Device – Cover Home Every configured device; setup determines its initial state
Device – Exclusion % Metered devices

These entities let you pause or change the saved behavior without reopening setup. See Load exclusion for the effect of each control.

If it does not work

Symptom Likely cause What to check
The form requires a power sensor The device is configured as a metered load Select a numeric watt sensor, or enable EV charger without power telemetry and provide an activity sensor
Dynamic Power Control cannot be saved Its required activity sensor is missing Select Device active / EV charging sensor
The battery compensates the wrong amount The included-in-consumption choice does not match the main meter Check whether switching the device changes the main sensor reading
Cover Home has no useful effect Solar Surplus or external solar-production data is missing Enable Solar Surplus and configure the solar production sensor under Sensors
Predictive charging reserves energy for an absent EV The demand sensor stays above zero after disconnection Configure Presence entity for the remaining demand (optional) using a reliable connected/present entity
A runtime control is missing The device definition does not enable that behavior, or its entity is disabled Reopen the device configuration and check the Omnibattery device's disabled entities
Advanced details

Field requirements

Omnibattery supports up to 4 configured special devices. A normal excluded device requires a numeric power sensor. A new state-only EV configuration requires an activity sensor. Dynamic Power Control also requires an activity sensor and is meaningful only with Solar Surplus enabled. Cover Home requires Solar Surplus and an external solar-production sensor.

Existing state-only EV entries that stored their status entity in Device power sensor remain supported. Activity detection accepts binary on and charging words case-insensitively.

Expected remaining demand

The optional sensor must report convertible energy such as Wh, kWh, or MJ. Omnibattery uses it only when Consumption is included in home consumption sensor is enabled. State-only EV devices are skipped because their demand is already represented by the consumption forecast. The runtime exclusion percentage scales the reserved amount as well as the load correction.

The reservation cannot exceed solar remaining after the predictive safety margin:

claim = min(expected remaining demand, remaining solar after safety margin)
solar available to the battery = remaining solar after safety margin - claim

If the demand value is unavailable, unknown, non-numeric, or not an energy unit, no claim is made. The optional presence entity avoids reserving solar when an upstream integration keeps reporting demand for a disconnected device. Whole-state values on, true, home, present, connected/plugged/plugged in (EN), verbunden (DE), aangesloten/aanwezig (NL), connesso (IT), connecté/branché (FR), conectado (ES/PT), connectat (CA), and charging/cargando/laden count as present. The match is on the whole state, never a fragment, because a negative phrasing contains its own positive one — disconnected contains connected. Unknown, unavailable, missing, and unmatched compound states (Connected, not charging) count as absent; use a binary sensor if a text state is ambiguous. Leaving the field empty always counts a valid demand sensor.

evcc users can select sensor.evcc_<loadpoint>_charge_remaining_energy and pair it with binary_sensor.evcc_<loadpoint>_connected.

The reservation is spread in proportion to the energy in today's remaining solar intervals; it does not predict when the device will consume. Tomorrow's forecast is not reduced in a cross-midnight projection. Predictive charging may re-plan when the claim changes by at least 2 kWh, with at least 15 minutes between those evaluations and no more than 4 claim-driven evaluations per day. Diagnostics publish the current value as excluded_demand_claim_kwh alongside solar_surplus_kwh and solar_available_to_battery_kwh on Predictive Charging Active.
