Choose your battery connection

Choose the route that matches your battery and the way it is connected to Home Assistant. Omnibattery can coordinate up to ten supported batteries, including mixed-brand installations.

Choose a battery brand

What you own What you need Select in the wizard Setup guide
Marstek Venus connected directly or through a Modbus gateway A reachable Ethernet, RS-485, or USB connection Marstek Venus Marstek
Marstek Venus connected through a LilyGo bridge The supported ESPHome firmware and its device in Home Assistant Marstek via LilyGo RS485 (ESPHome) ESPHome / LilyGo
Zendure SolarFlow 800, 800 Plus, 800 Pro, 1600 AC+, 2400 AC Pro/+, 3000 Mix AC+, 4000 Mix AC+, or 4000 Mix Pro The device's local IP address and HEMS disabled Zendure SolarFlow Zendure
Anker SOLIX Solarbank Max AC, 4 E5000 Pro, or XE AC Modbus TCP and Third-Party Control enabled Anker SOLIX Solarbank Max AC / 4 E5000 Pro (also detects XE AC) Anker SOLIX
Sessy Home Battery A reachable Sessy dongle and its credentials Sessy Sessy
Indevolt SolidFlex or PowerFlex The local API enabled and Realtime mode selected in the Indevolt app Indevolt SolidFlex / PowerFlex Indevolt
Hoymiles MS-A2 or supported HiBattery MQTT configured in Home Assistant and the complete device ID Hoymiles MQTT Hoymiles MQTT
Huawei SUN2000 with LUNA2000 A Modbus TCP endpoint and either Huawei Solar or direct Modbus writes Huawei SUN2000 + LUNA2000 Huawei

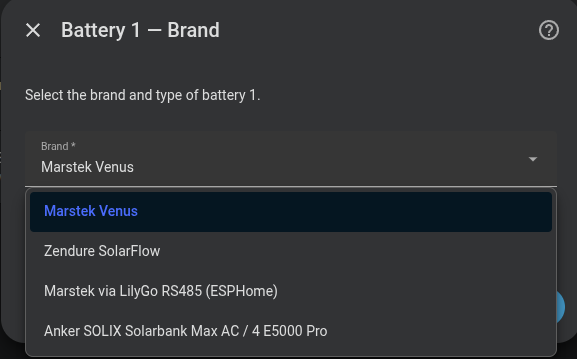

Battery brand selector

The LilyGo option is a separate connection route for a Marstek battery. Choose it only when ESPHome already exposes the bridge as a device in Home Assistant.

Add each battery

  1. Open Settings → Devices & services → Add integration and select Omnibattery. For an existing installation, open Omnibattery and choose Configure.
  2. Choose the number of battery units in the installation.

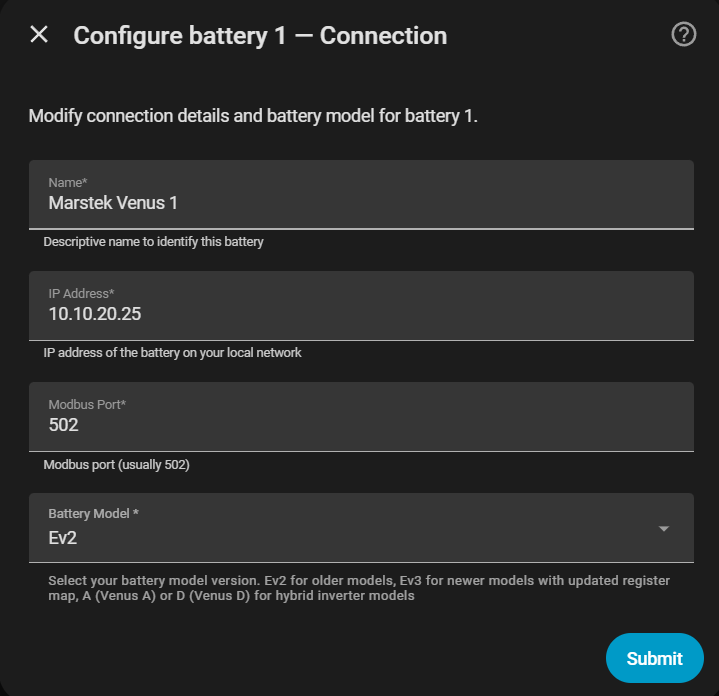

  3. Select the brand or connection route for the first battery.
  4. Follow its setup guide, then repeat the brand and connection steps for each remaining unit.
  5. Complete the common power and state-of-charge limits.

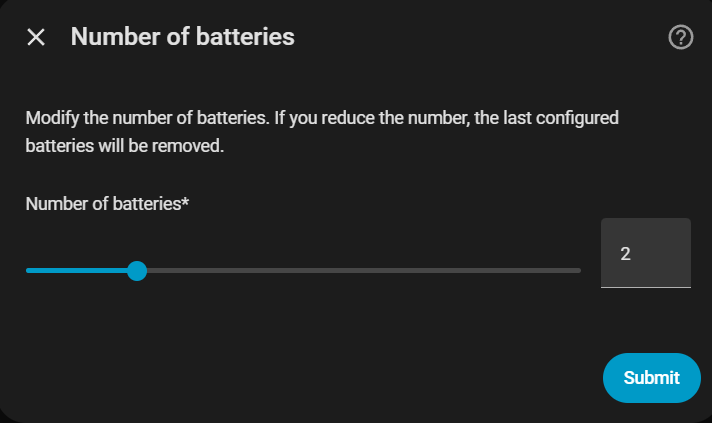

Number of batteries slider

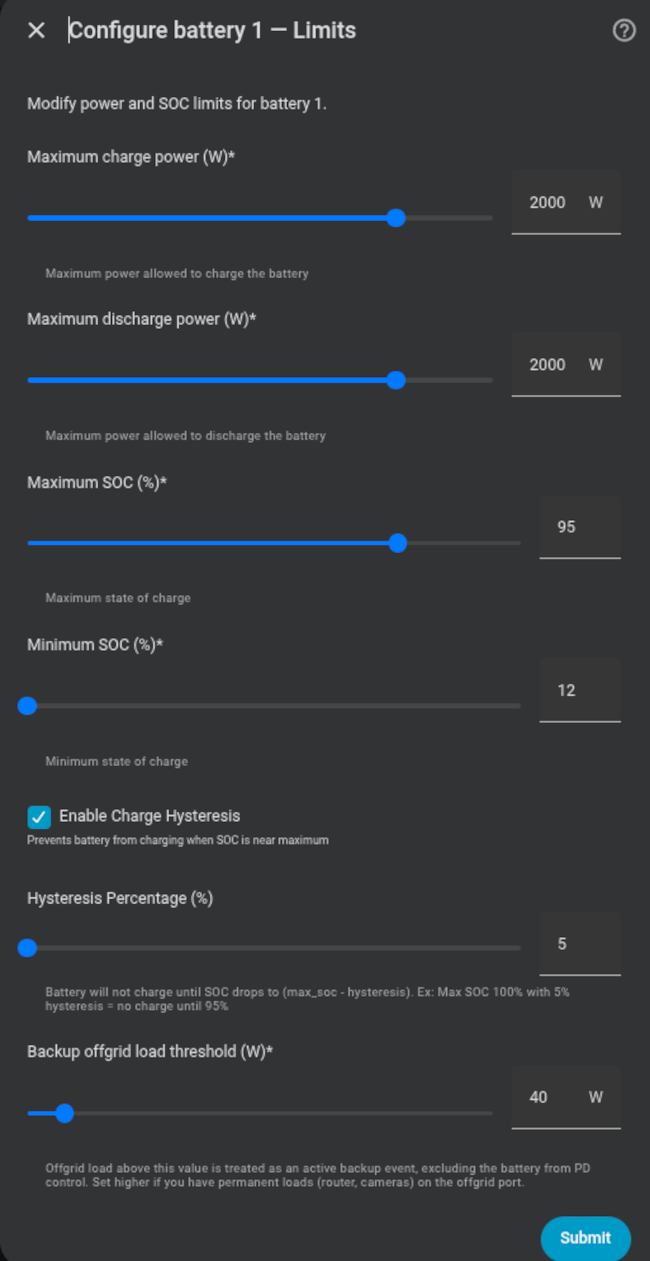

Battery configuration form

Common settings

Setting What it changes
Name Identifies the battery in Home Assistant and the Omnibattery dashboard.
Max charge power / Max discharge power Caps what Omnibattery may request. A device-reported hardware limit can reduce the effective value.
Max SOC / Min SOC Sets the upper charging limit and lower discharging limit. SOC means state of charge.
Charge hysteresis Prevents rapid cycling after the battery reaches its upper limit. The minimum is 2%; see charge hysteresis.
Backup Offgrid Threshold Keeps a battery out of automatic control while its backup output is serving a load above this value.
Nominal capacity Enables stored-energy and efficiency calculations when the battery does not report its capacity.

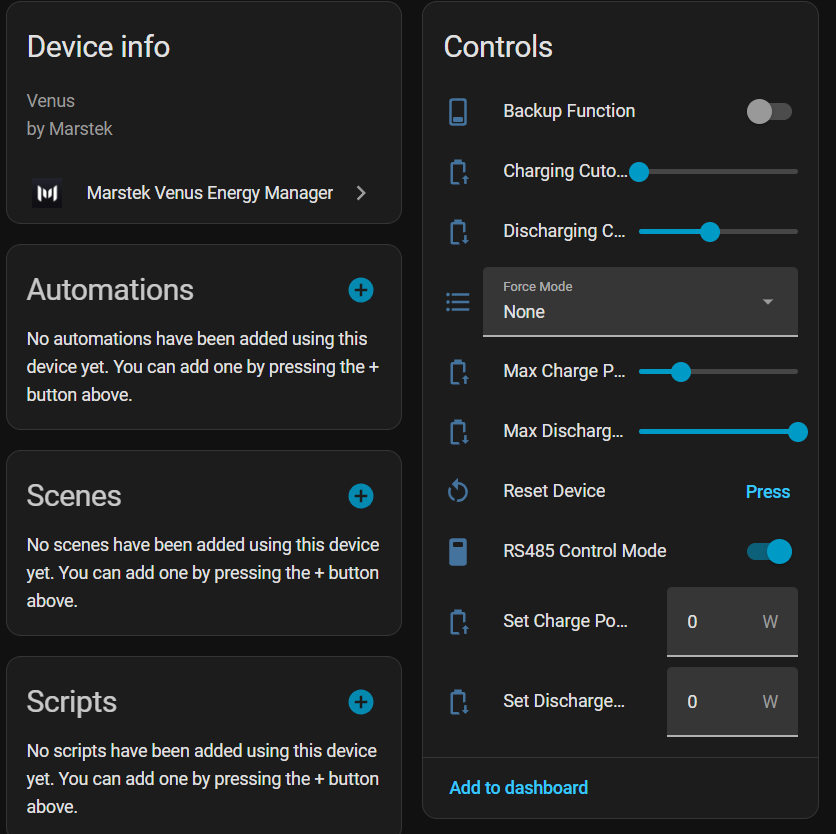

The integration creates runtime controls for state-of-charge and power limits, so you can adjust them without running the setup flow again. Battery Manual Control reserves one battery for your own charge, discharge, or idle commands; see manual control in a multi-battery installation.

Charge hysteresis

When a battery reaches its upper limit, Omnibattery records the SOC at that moment and stops charging it. Charging resumes only when the SOC drops below that recorded value minus the hysteresis. With Max SOC 90% and the default 2%, the battery charges again only once its SOC is below 88%.

The minimum of 2% is deliberate and cannot be lowered. Near the top, the SOC a battery reports drifts and often moves in whole-percent steps. With a smaller margin, that noise alone would restart charging over and over at the upper limit. Each restart switches the battery relay on and off; avoiding those repeated cycles reduces relay wear and preserves battery life.

Self-consumption at the top

Some batteries, such as some Anker models, use a little of their own energy while idle. Once full, their SOC can slowly drift from 90% to 88% without discharging to the home. This is expected: the battery stays inside the hysteresis band and Omnibattery does not top it up. If you want it to end the day higher, raise Max SOC instead of trying to remove the hysteresis.

If the battery route is unclear

Symptom Likely cause What to check
Your model is absent from the table The driver may support a family that is not yet documented, or the model may be unsupported Compare the exact model name with the relevant brand page before configuring it
The wizard cannot connect A product option, local protocol, address, or credential is missing Complete the brand page's Before you start checklist
The battery connects but ignores commands The manufacturer's own energy-management mode still owns control Check the brand-specific app setting and Battery Manual Control
A limit is lower than expected The detected device envelope is lower than the configured software limit Check the model table and the limit reported by the battery
Advanced details

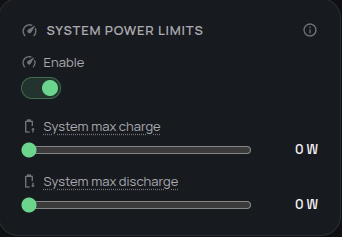

Omnibattery asks for each battery separately, so supported brands can be mixed in one installation. Individual battery limits always apply even when system-level charge or discharge caps are configured. Setting either system cap to 0 W disables that cap.

Runtime power and state-of-charge limits are persisted and restored after a Home Assistant restart. Battery Manual Control first verifies an idle target, removes the battery from the automatic pool, and also restores that ownership after restart.

Backup Offgrid Threshold defaults to 50 W. Leave it at zero when no standby load is connected, or set it above the normal permanent backup-port load so a router or network switch does not look like a backup event. When Backup Function is enabled and the measured load exceeds the threshold, Omnibattery excludes the battery from proportional–derivative (PD) control. It waits 5 min after the load falls before returning the battery to the automatic pool.
