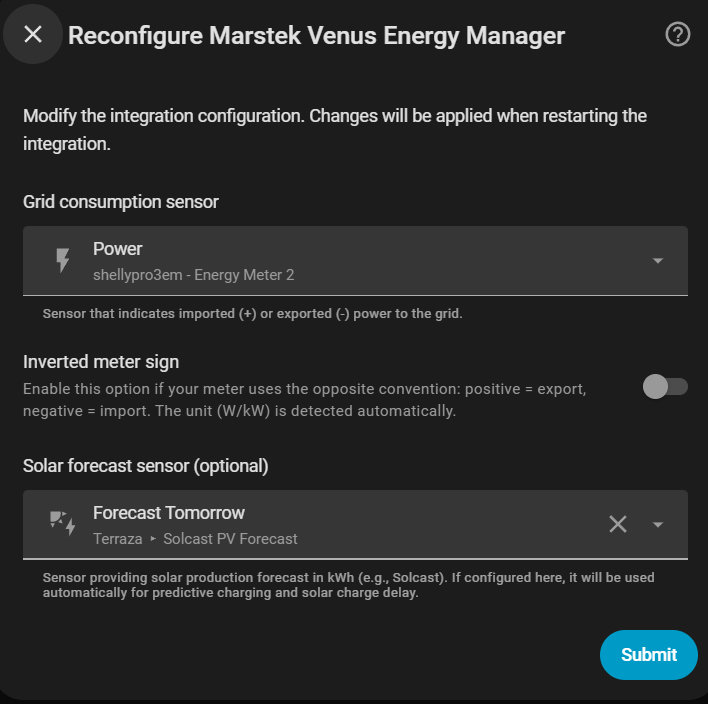

Main sensor¶
The first step configures the global data sources for the integration.
Grid consumption sensor¶
A Home Assistant sensor that measures power exchange with the grid (in W or kW).
Compatible sensors
Any sensor that exposes grid power works: Shelly EM, Shelly EM3, Neurio, smart meter integrations (e.g. sensor.grid_power).
Update frequency
The sensor should update as fast as possible. The controller runs every 2.5 seconds and makes decisions based on the most recent reading available — the older the reading, the less accurate the response.
Home consumption can vary by several kilowatts in fractions of a second (appliance start-ups, oven, washing machine…). A sensor that reports every 10 seconds or more introduces a lag that causes the controller to react to a situation that no longer exists, leading to overshoot or unnecessary corrections.
Recommended: 1–2 second update interval. Devices like Shelly EM/EM3 support this natively.
Automatic kW detection¶
If the sensor's unit_of_measurement attribute is kW, the integration multiplies the value by 1000 automatically.
Inverted sign¶
Enable "Inverted meter sign" if your sensor uses the opposite convention:
| Convention | Import | Export |
|---|---|---|
| Standard (default) | Positive value | Negative value |
| Inverted | Negative value | Positive value |
Leave it disabled if you are unsure.
Solar forecast sensor (optional)¶
Sensor providing today's estimated solar production in kWh or Wh.
Configuring it here makes it available to:
- Predictive charging (Time Slot and Dynamic Pricing modes)
- Solar charge delay
You can also leave it blank and configure it later in those specific sections.
Household consumption sensor (optional)¶
A power sensor (W or kW) that measures total household electricity consumption.
When configured, the integration integrates the sensor reading over time — only during the solar+battery window (outside the charging time slot) — to produce a daily kWh figure. This replaces the default estimation method, which derives consumption from battery discharge + grid import at min SOC.
When to configure it:
- You have a clamp meter, Shelly EM, or similar device measuring total house load.
- You want predictive charging and charge delay to use real consumption data.
- Your solar production varies significantly week to week (high-solar weeks cause the default estimation to underestimate demand).
How it works:
| Mode | Consumption source |
|---|---|
| Sensor configured | Integration of the power sensor (W→kWh) during the solar+battery window |
| No sensor | Battery discharge + grid import at min SOC (existing behaviour) |
The integration accumulates energy during the solar+battery window only (i.e. outside the configured charging time slot). If no time slot is configured, it accumulates all day. The counter resets at midnight and survives HA restarts.
The daily consumption figure feeds the same history that predictive charging and charge delay read — no additional configuration is needed in those sections.
Supported units
Both W and kW sensors are accepted. The integration reads the unit_of_measurement attribute and converts automatically.
Creating a helper sensor¶
Household consumption is the balance of all power flows:
House consumption = Grid power + Solar power + Battery discharge − Battery charge
Without the battery term, charging would undercount consumption and discharging would overcount it.
If your meter and battery expose these as separate sensors, combine them using a Template helper in Home Assistant.
Go to: Settings → Devices & Services → Helpers → Create Helper → Template → Template sensor
{% set grid_power = states('sensor.YOUR_GRID_POWER_SENSOR') | float(0) %}
{% set solar_power = states('sensor.YOUR_SOLAR_POWER_SENSOR') | float(0) %}
{% set bat_discharge = states('sensor.YOUR_BATTERY_DISCHARGE_SENSOR') | float(0) %}
{% set bat_charge = states('sensor.YOUR_BATTERY_CHARGE_SENSOR') | float(0) %}
{{ (grid_power + solar_power + bat_discharge - bat_charge) | round(0) }}
| Variable | Description | Example entity |
|---|---|---|
grid_power |
Grid exchange (positive = import, negative = export) | sensor.shellypro3em_energy_meter_2_power |
solar_power |
Total solar production | sensor.shellypro3em_energy_meter_1_power |
bat_discharge |
Battery discharge power (positive, W) | sensor.marstek_venus_system_system_discharge_power |
bat_charge |
Battery charge power (positive, W) | sensor.marstek_venus_system_system_charge_power |
Set the unit of measurement to W and the device class to power.
Multiple solar strings
If you have more than one inverter or solar branch and no single aggregated sensor, sum them:
